Overview:

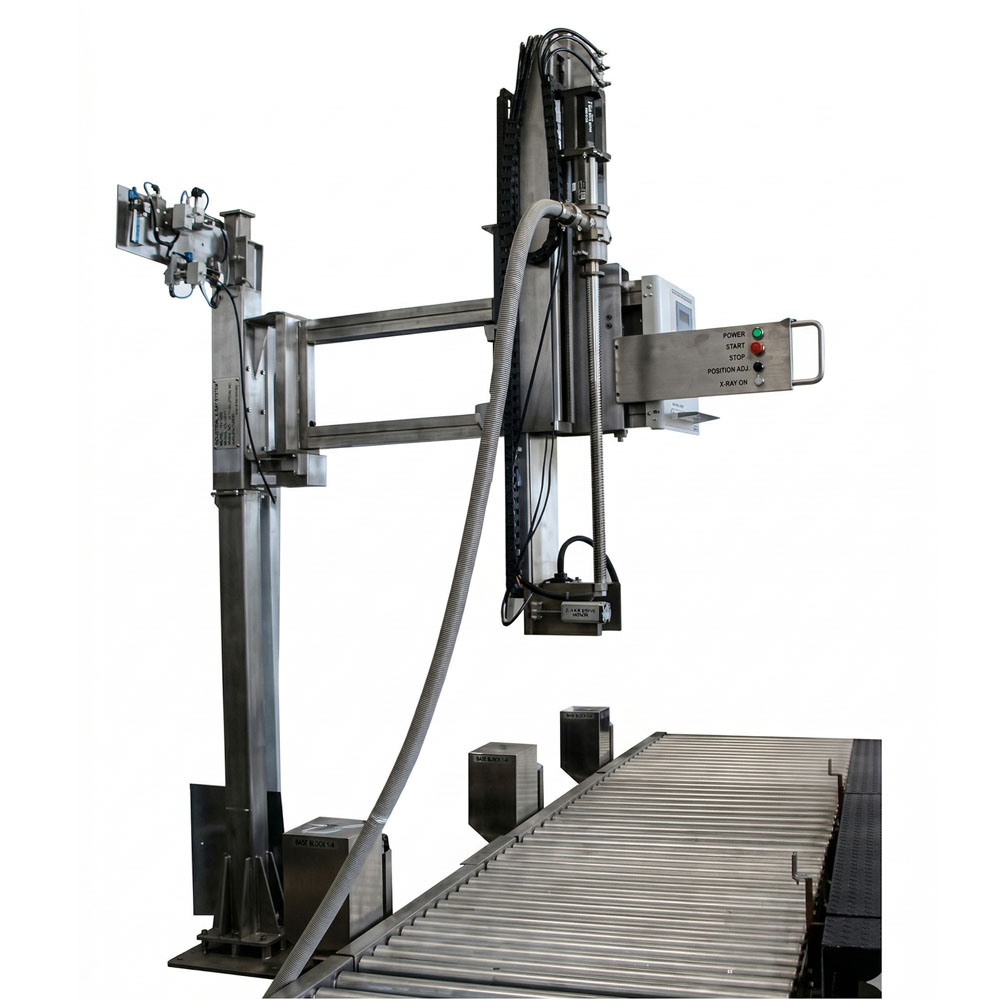

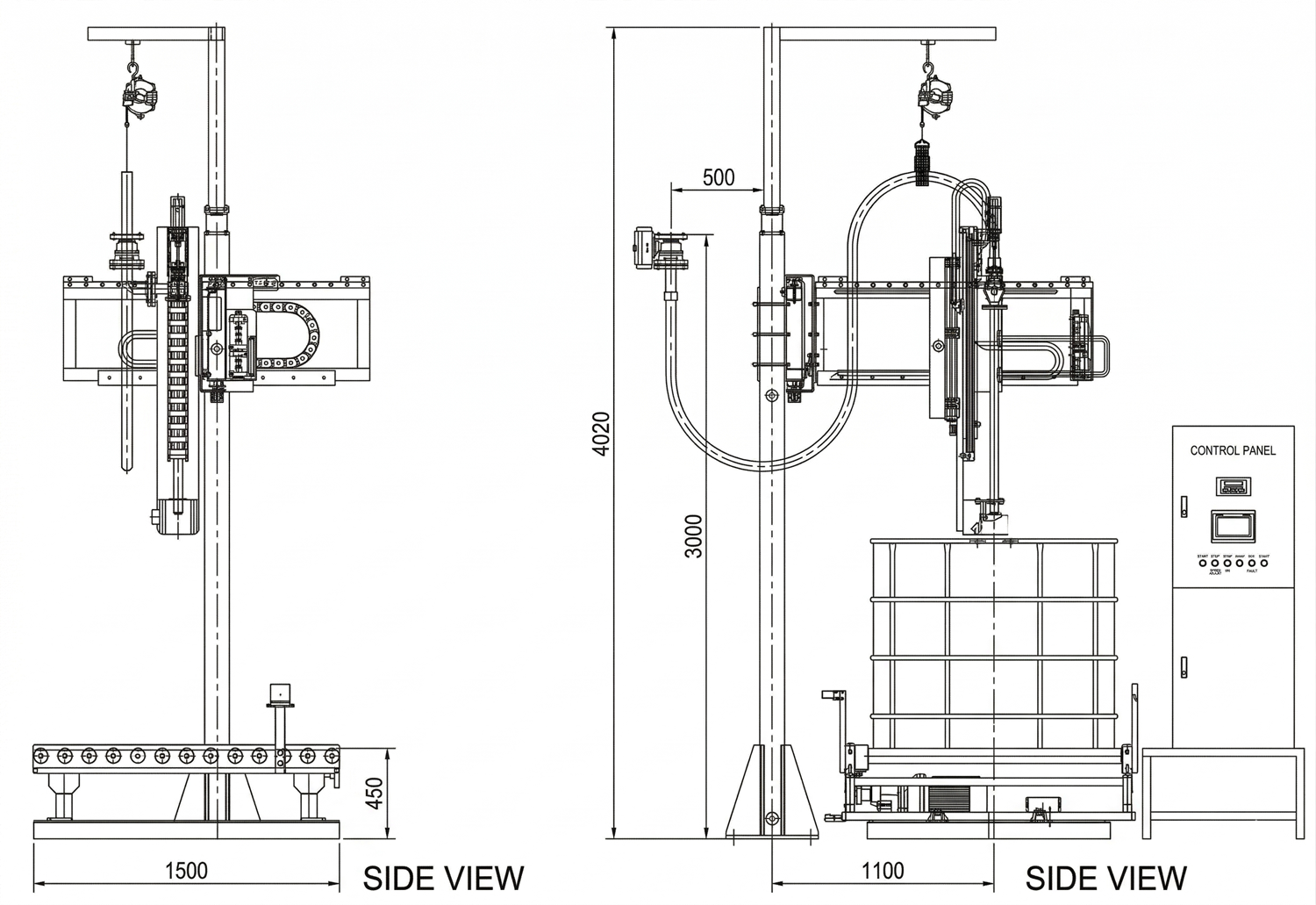

The YCS300(H)-BM is a large-capacity IBC liquid filling scale. Its cantilever-arm design allows filling from the top of IBC tanks without height restrictions, integrated with a pallet conveyor for automated positioning.
Key Specifications:
– Total weighing capacity: 1200 kg
– Fill range: 300-1200 kg per fill
– Filling speed: 60 fills/hr
– Resolution: 0.2 kg
– Accuracy: +/- 2% FS
– Pneumatic: 0.5-0.7 MPa, 10 m/hr
– Working environment: -10 to 45 deg C; humidity max 90%
– Power: AC380V, 50Hz, 16kVA
Key Features:
– No height restriction: cantilever arm raises freely without limit
– Touch-screen control with auto multi-position filling
– Manual / semi-auto / auto three operating modes
– Quick batch-set correction; auto calibration
– Pallet auto-conveyor integration for IBC drum handling
– No-spillage protection; alarm for abnormal tank leaks
