Overview:

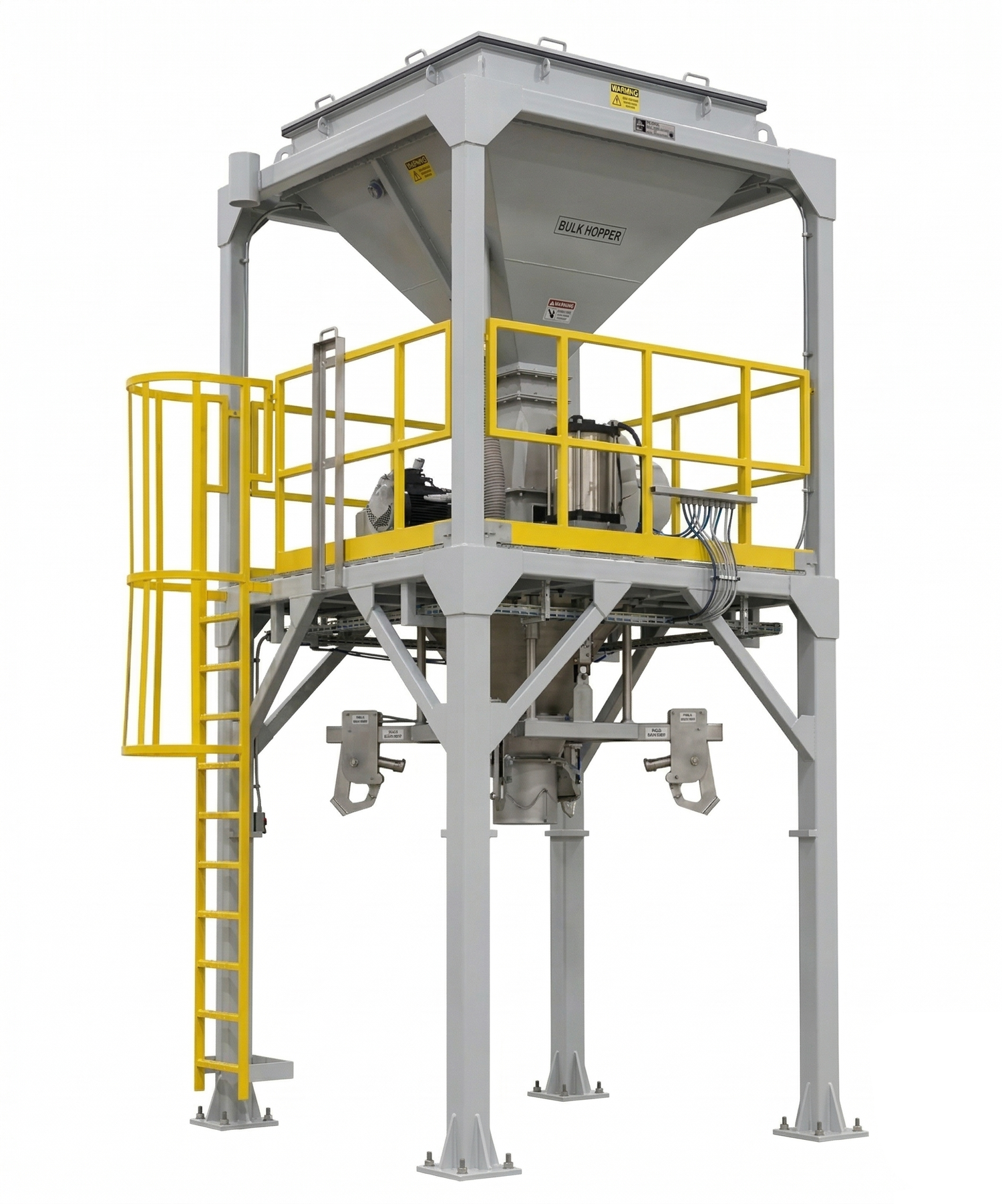

The DCS-1000G is a large-capacity FIBC/big-bag packaging scale suitable for factories without full automation. Manual bag-hanging and easy operation make this a cost-effective large-bag packaging solution.
Key Specifications:
– Applicable materials: flexible granular materials (e.g., PET, PBT)
– Applicable bags: PP woven bags; PE inner bag (optional)
– Standard bag size: 800-1300L (per GB/T 10454-2000)
– Pack weight: 800-1000 kg/bag
– Accuracy grade: 0.1
– Filling speed: 20-30 bags/hr
– Working temperature: -10 to 40 deg C
Filling Process:

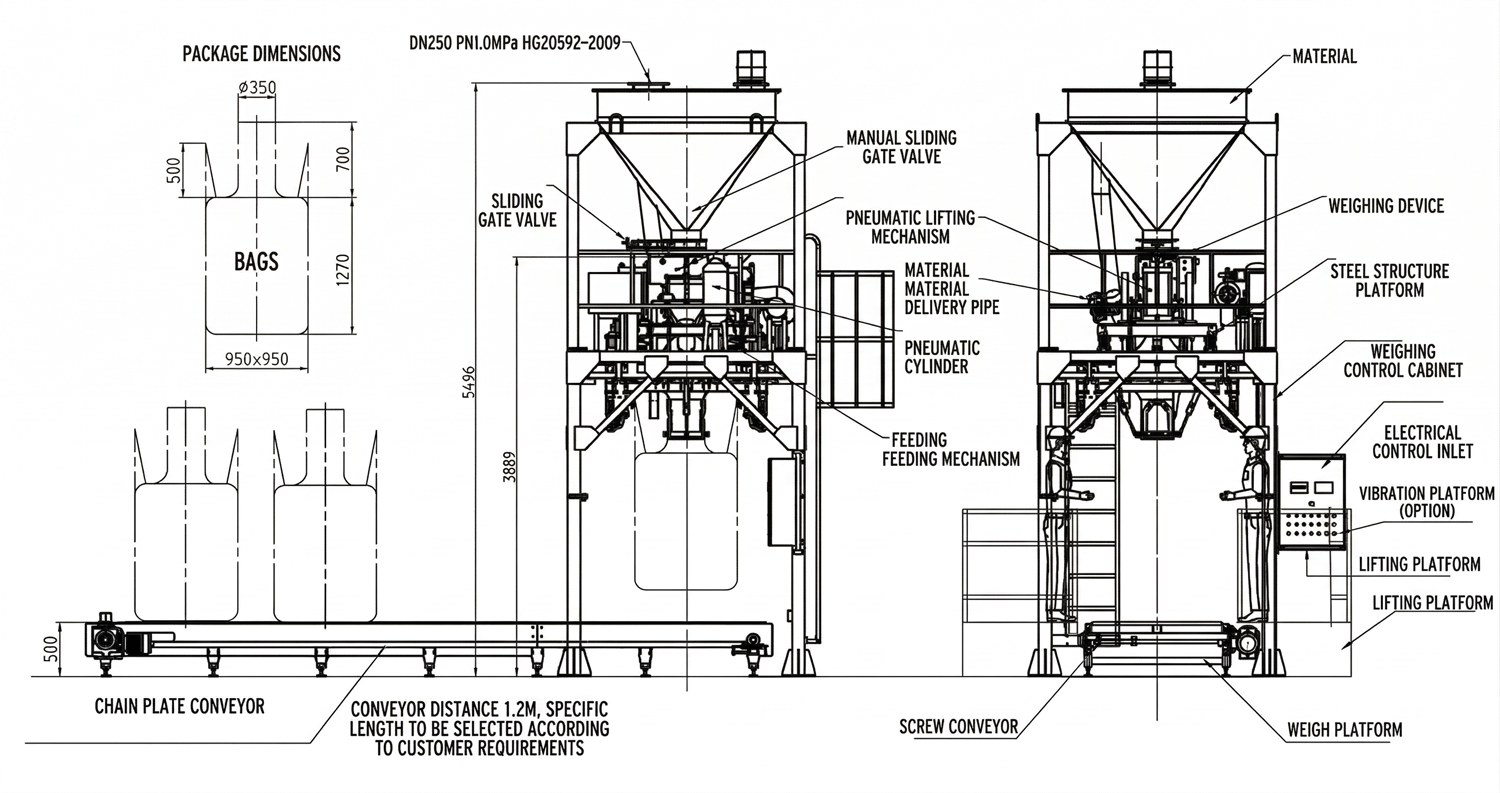

Manual bag hanging -> pneumatic clamping -> auto material feed and weighing -> bag release -> forklift or conveyor output
Key Features:
– Manual charging; suitable for facilities with limited automation
– Friendly human-machine interface; simple operation
– Flexible bag size support per GB/T 10454-2000 standard
