Overview:
A multi-material, multi-scale automated dosing and batching control system widely applied in chemical, food, pharmaceutical, building materials, and rubber industries.

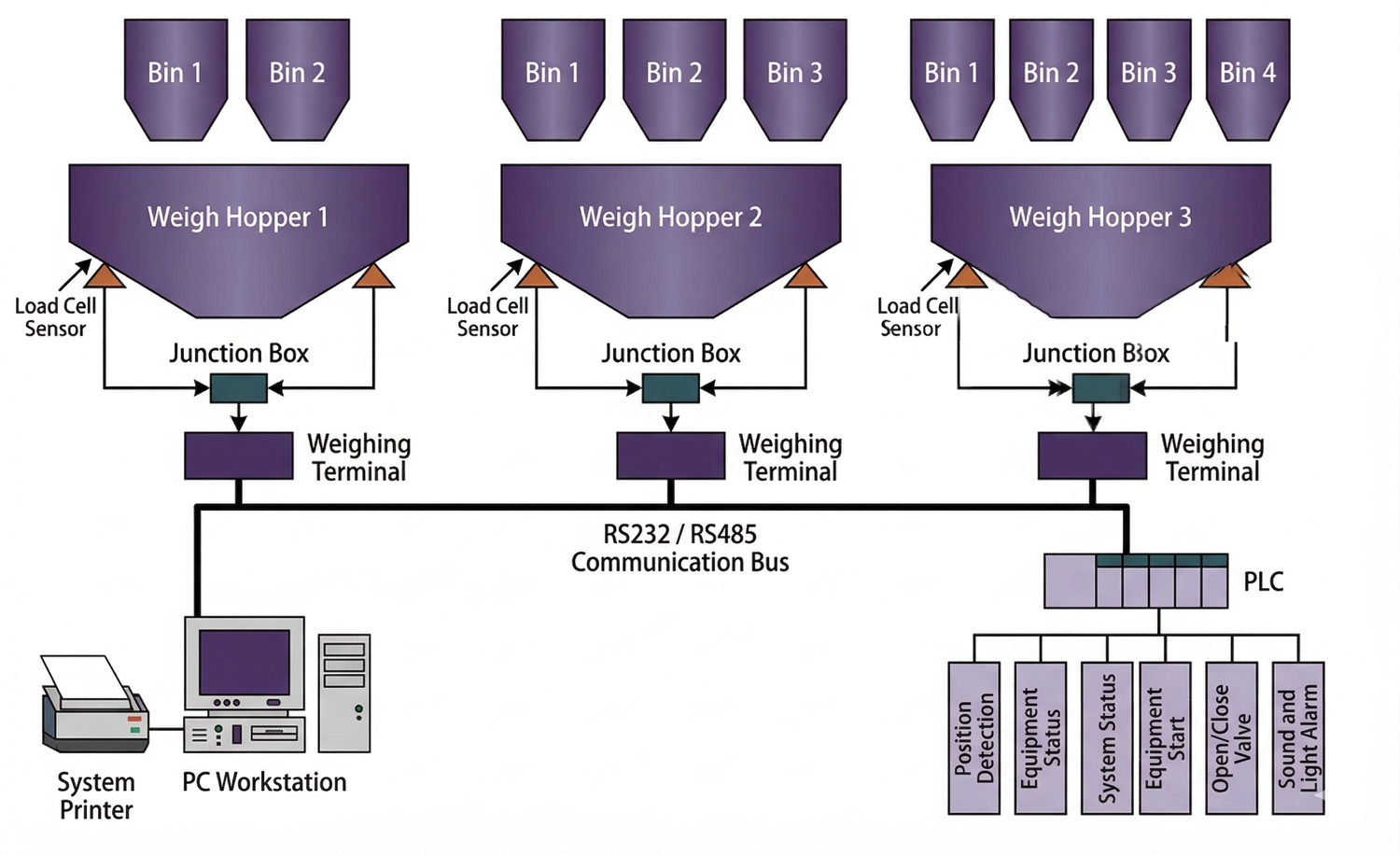

System Architecture:
– PLC-based automation controller with centralized PC monitoring
– Data collection modules; weight display units
– Upstream/downstream interfaces: belt conveyors, silos, discharge gates
– Real-time production data tracking and reporting
Batching Modes:

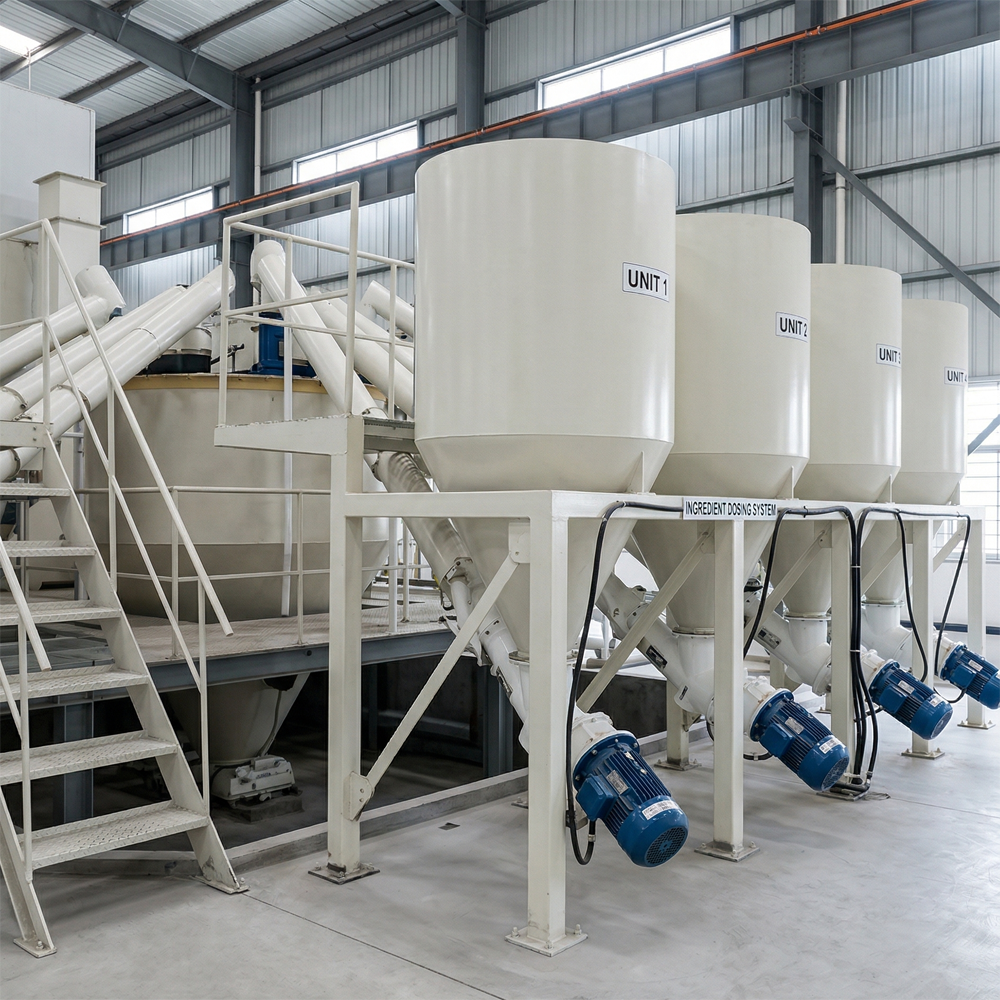

1. Sequential Batching: materials from multiple hoppers weighed and added in sequence. Advantages: simple, stable, strong anti-error.
2. Loss-in-Weight Batching: each hopper monitors weight loss and directly controls its own feeder. Advantages: supports continuous production, high precision.
System Functions:
– Fully automatic start, stop, and mode switching
– Multi-material, multi-step configurable control
– Real-time production monitoring with quantity tracking
– Comprehensive reporting: data analysis and printing
– Multiple safety backups and equipment protection
– PLC plus centralized PC management
Applicable Industries:
Chemical, food, pharmaceutical, building materials, rubber/plastics processing.
